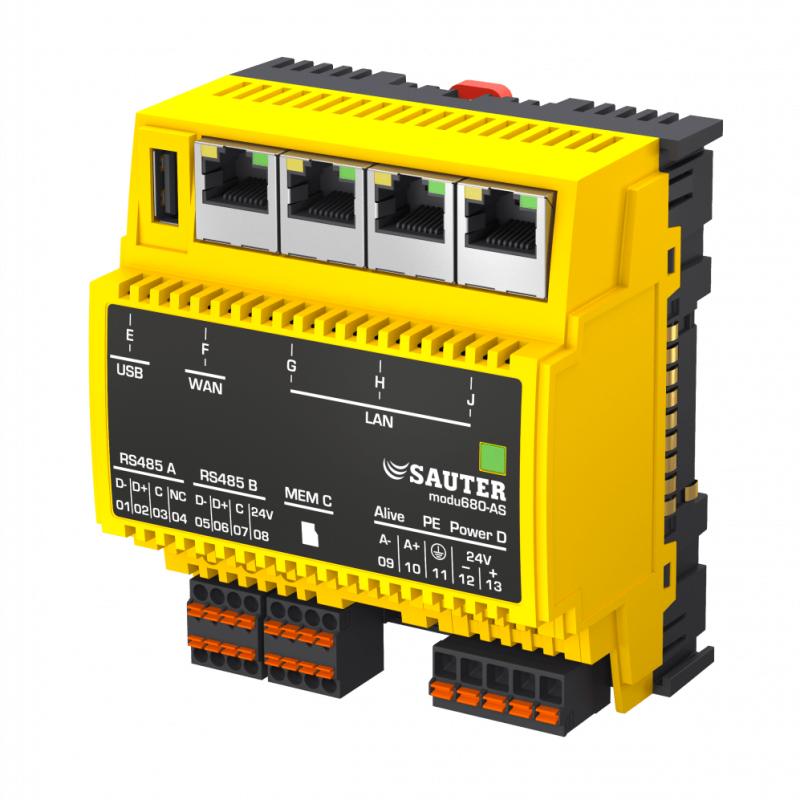

Modu680- Automation Station & Web Server

EY-modulo 6 is the high-end building management system from SAUTER. With new automation stations and new system topology, modulo 6 offers extended flexibility and scalability.

The SAUTER modulo system family covers all applications in regulation and control technology from HVAC, building and energy management to flexible solutions in integrated room automation.

• Part of the SAUTER modulo 6 system family
• Modular automation station, expandable with I/O modules and communication modules
• Regulation, control, monitoring and optimisation of operational systems in HVAC engineering
• Locally expandable with up to 24 modules via the SAUTER Extension Bus
• Can be locally equipped with ecoLink I/O modules and ASV actuators via SLC interface
• RS-485 interface for field bus integration (Modbus/RTU/ASCII)
• Four RJ45 connections for two separate IP networks (OT/IT; Operational/Information Technology). Three connections switched for daisy chain
• BACnet device profile B-BC (EN ISO 16484‑5)
• AMEV AS-B profile
• Other communication options:
• BACnet/SC (encrypted communication)
• MQTT interface (MQTT Broker/Client)
• REST API interface
